REEFE VORTEX SUMP PUMP 155L MIN 7 M HD WITH PUMP FLOAT SWITCH (ncrvortex155fs)
$350.00
REEFE VORTEX SUMP PUMP 155L MIN 7 M HD WITH PUMP FLOAT SWITCH (ncrvortex155fs)
• Solids handling 15mm
• High performance
• Thermal overload protection
• 10m power cable, H05RN-F
• Includes 3 different hosetails – 25/32/40mm
• Includes lifting rope
• Max liquid temperature 40°C
• Max ambient temperature 40°C
• Electrical Safety Approval to AS/NZS 60335.2.41

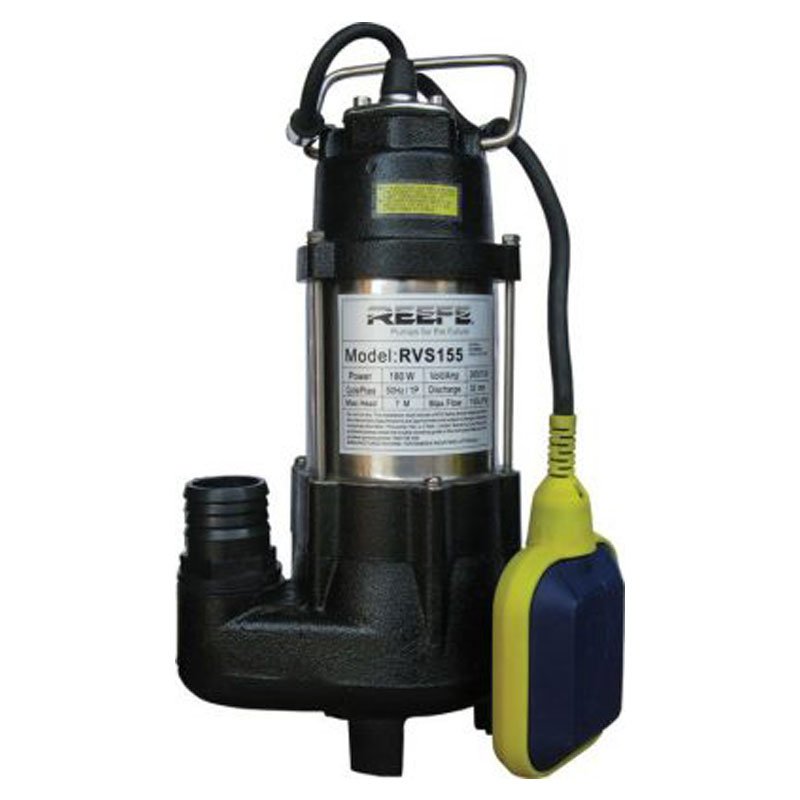

This REEFE® submersible vortex pump has been specifically designed for sump pump out applications. Solid cast-iron and stainless steel construction for robust and reliable pumps on which you can depend. Capable of handling soft solids up to 15mm.
Dirty water transfer
Grey water
Household wastewater
Sump draining
Pool emptying
Wastewater systems
Stainless steel motor housing and shaft
Technopolymer vortex impeller with special sand-flinging design to reduce clogging and wear
Dual silicon carbide/ceramic mechanical seal with oil chamber
MAC 3 type float switch, depth adjustable
Ingress Protection IP68
Insulation Class B
Cast iron base and outlet
| CODE | 8409 | MODEL | RVS155 |
| AMPS | 1.5 | P2 | 0.18 |
| RATED FLOW | 90 L/min | RATED HEAD | 4.0m |
| MAXIMUM FLOW | 155 L/min | MAXIMUM HEAD | 7.0m |
| SOFT SOLIDS | 15mm | CABLE LENGTH | 10m |
| OUTLET | 32m | WEIGHT | 8.5kg |
| SIZE LxWxH (mm) | 220 x 120 x 340 |
REEFE VORTEX SUMP PUMP 155L MIN 7 M HD WITH PUMP FLOAT SWITCH (ncrvortex155fs)
• Solids handling 15mm
• High performance
• Thermal overload protection
• 10m power cable, H05RN-F
• Includes 3 different hosetails – 25/32/40mm
• Includes lifting rope
• Max liquid temperature 40°C
• Max ambient temperature 40°C
• Electrical Safety Approval to AS/NZS 60335.2.41
This REEFE® submersible vortex pump has been specifically designed for sump pump out applications. Solid cast-iron and stainless steel construction for robust and reliable pumps on which you can depend. Capable of handling soft solids up to 15mm.
Dirty water transfer
Grey water
Household wastewater
Sump draining
Pool emptying
Wastewater systems
Stainless steel motor housing and shaft
Technopolymer vortex impeller with special sand-flinging design to reduce clogging and wear
Dual silicon carbide/ceramic mechanical seal with oil chamber
MAC 3 type float switch, depth adjustable
Ingress Protection IP68
Insulation Class B
Cast iron base and outlet
| CODE | 8409 | MODEL | RVS155 |
| AMPS | 1.5 | P2 | 0.18 |
| RATED FLOW | 90 L/min | RATED HEAD | 4.0m |
| MAXIMUM FLOW | 155 L/min | MAXIMUM HEAD | 7.0m |
| SOFT SOLIDS | 15mm | CABLE LENGTH | 10m |
| OUTLET | 32m | WEIGHT | 8.5kg |
| SIZE LxWxH (mm) | 220 x 120 x 340 |
