U-V 48w High Output Lamp | 4 Pin -Ultraviolet quartz Thimble –o ring kit (ncuvthorkit) replacement kit uv whole house high performance system (ncwhwptuv)
$232.00

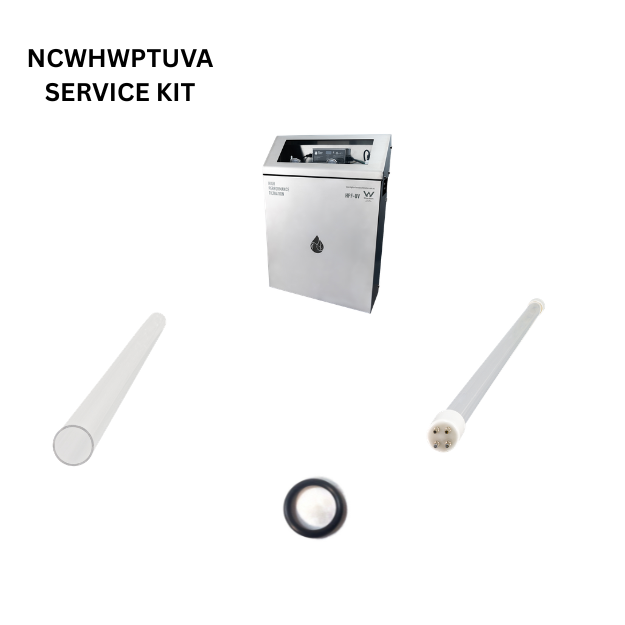

what’s in the kit
1 x U-V 48w High Output Lamp | 4 Pin Flat 436mm Length | Compatible with (NCH7-90-Lamp) Replacement uv lamp water filter High Performance | Weatherproof Twin Filter + UV Whole House Water Sanitation System
1 x Ultraviolet Replacement Thimble – Replacement thimble for (ncwhwptuv system) -(NCH7-90-Thimble)
1 x Replacement O-Ring Seals Suit 23mm OD Quartz Thimbles & Sleeves (NCGT7-2NSF-OR) Replacement o/ring thimble
High Outpu48W High Output UV Lamp – 4 Pin Flat 436mm | Compatible with H1-450 & H7-90-AT
Replacement 48W High Output UV Lamp for Whole House Water Filtration Systems (NCH7-90- UV Lamp)
Maintain the performance and safety of your UV water filtration system with the 48W High Output UV Lamp (H7-90-Lamp). Designed for use in compatible UV water sterilisation systems, this premium replacement lamp delivers powerful UV-C output to help protect drinking water from harmful bacteria, viruses, and other microorganisms.
Compatible with (NCWHWPTUV) systems, this high-output lamp is engineered to provide reliable ultraviolet disinfection while supporting high-flow with UV Performance
Premium Quartz UV Thimble 470mm x 23mm | Suits (NCWHWPUV U-V SYSTEM )
Replacement Quartz Sleeve for UV Water Filtration Systems (NCH7-90 thimble)
Maintain the performance and reliability of your UV water treatment system with this Premium Quartz UV Thimble, designed specifically for (NCWHWPTUV) High Performance Filter Systems
Manufactured from high-quality fused quartz, this replacement UV sleeve protects the UV lamp while allowing maximum transmission of UV-C light for effective water disinfection. Regular replacement helps ensure your UV sterilisation system continues to provide safe, clean drinking water by maintaining optimal ultraviolet performance.
Product Specifications
- Product Type:(NCH7-90 thimble) UV Quartz Thimble / Quartz Sleeve
- Compatible Systems:
- (NCWHWPTUV) High Performance Filter Systems
- Length: 470mm
- Outer Diameter: 23mm
- https://northcoastwatertanks.com.au/product/high-performance-weatherproof-twin-filter-uv-whole-house-water-sanitation-system-for-raw-water-rainwater-tank-bore-hpf-uv/Design:
- Open at one end
- Domed at the opposite end
- Material: High-Purity Fused Quartz
- O-Ring Requirement:
- Requires 1 x NCGT7-2NSF-OR O-Rings (sold separately or as specified)
- O-Ring Compliant to (NCH7-90-THIMBLE) Suitable for 23mm OD ThimblesSuits the following (NCH7-90-THIMBLE) ( SYSTEM NCWHWPTUV)
O’rings are specific to manufactures systems. Systems can look the same but have different specifications of diameter or thickness.
o- ring replacement 24 mths
A faulty o- ring may cause water to enter uv protection lamp resulting in water filter failure
