U-V 48w High Output Lamp | 4 Pin Flat 436mm Length | Compatible with (NCH7-90-Lamp) Replacement uv lamp water filter High Performance | Weatherproof Twin Filter + UV Whole House Water Sanitation System

ater treatment applications.

Product Specifications

• Model: (NCH7-90-Lamp) (Replacement uv lamp for ncwhwptuv system )
• Power: 48W High Output
• Length: 436mm
• Pin Configuration: 4 Pin Flat
• Lamp Type: UV-C Germicidal Lamp
• Compatible Systems:
  • H1-450 UV System
  • H7-90-AT UV System
• Designed for whole house water filtration and UV sterilisation systems

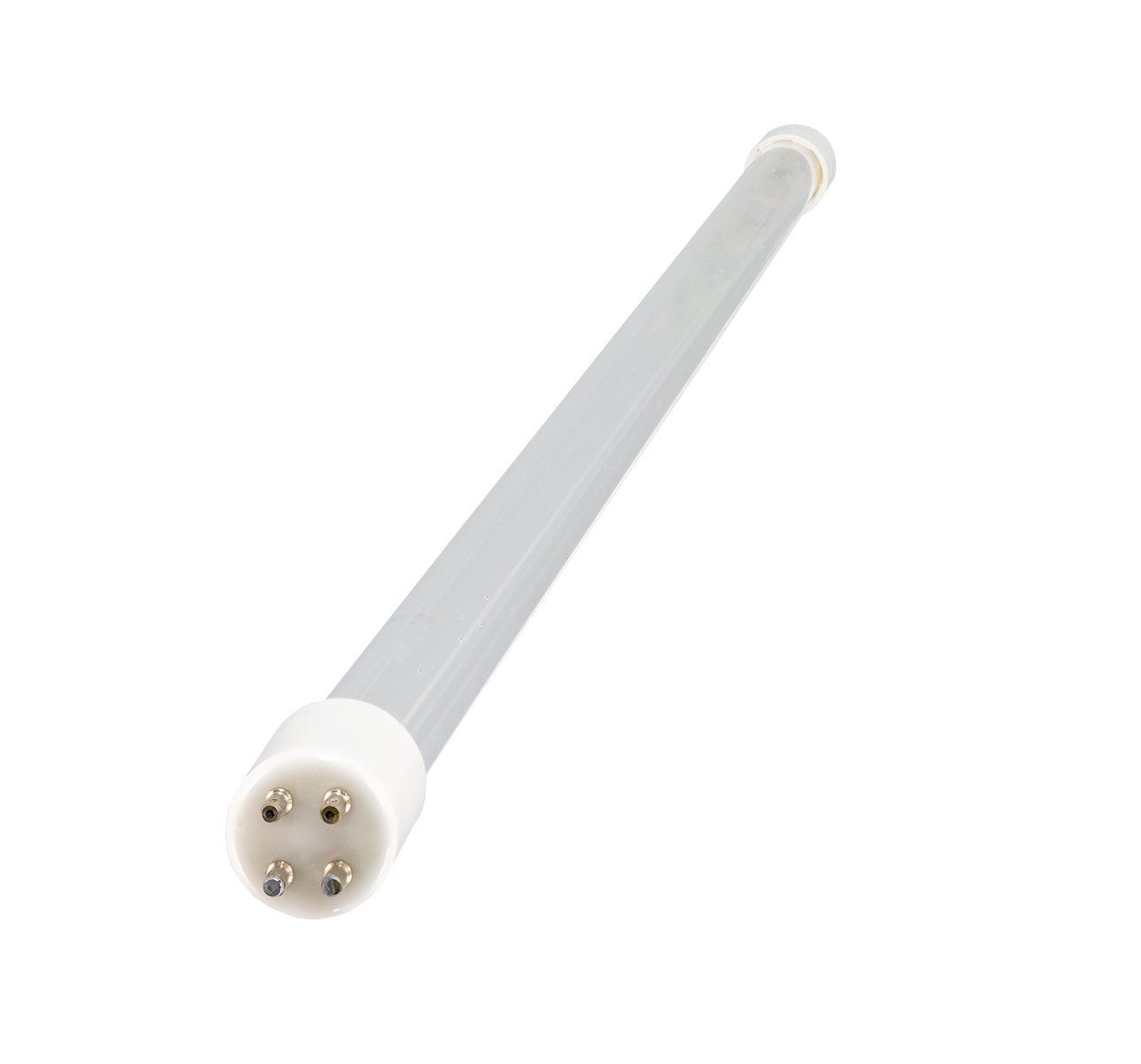

High Outpu48W High Output UV Lamp – 4 Pin Flat 436mm | Compatible with H1-450 & H7-90-AT

Replacement 48W High Output UV Lamp for Whole House Water Filtration Systems

Maintain the performance and safety of your UV water filtration system with the 48W High Output UV Lamp (H7-90-Lamp). Designed for use in compatible UV water sterilisation systems, this premium replacement lamp delivers powerful UV-C output to help protect drinking water from harmful bacteria, viruses, and other microorganisms.

Compatible with (NCWHWPTUV)  systems, this high-output lamp is engineered to provide reliable ultraviolet disinfection while supporting high-flow with UV Performance

High-output UV lamps provide superior ultraviolet intensity, allowing water treatment systems to achieve effective disinfection while maintaining strong flow rates. By delivering greater UV output from a compact lamp design, system manufacturers can reduce system size while maintaining sanitisation performance.

Benefits include:

• High UV-C output for effective water disinfection
• Suitable for high-flow water treatment systems
• Improved system efficiency
• Reliable performance for residential and rural water supplies
• Supports compliance with Australian drinking water treatment standards

Why Replace Your UV Lamp Annually?

UV water treatment systems rely on consistent UV-C radiation output to effectively disinfect water. Although a UV lamp may continue to illuminate after extended use, the germicidal intensity gradually decreases over time.

Our UV lamps are rated for approximately 9,000 hours of operation (12 months). After this period, UV output can no longer be guaranteed at the levels required for effective water sanitisation.

For optimal protection, we recommend replacing the UV lamp every 12 months.

UV System Maintenance Guide

Ultraviolet water treatment systems are measured by the UV dose delivered to the water, expressed as millijoules per square centimetre (mJ/cm²).

• 30mJ/cm² is considered the standard level of UV disinfection.
• 40mJ/cm² is generally regarded as the minimum dose required to meet Australian Drinking Water Guidelines for effective microbial treatment.

Regular maintenance ensures your system continues to provide safe and reliable drinking water.

Quartz Sleeve Maintenance

The UV lamp operates inside a protective quartz sleeve (also known as a quartz thimble), which prevents water from contacting the electrical components while allowing UV-C light to pass through efficiently.

Quartz is used because it offers:

• Excellent UV transmission
• High thermal resistance
• Superior durability and strength

Over time, the quartz sleeve can experience a process known as solarisation, where microscopic changes within the glass reduce UV transparency. Additionally, contaminants such as:

• Tannins
• Biofilm
• Algae
• Mineral scale

can accumulate on the sleeve surface, reducing the amount of UV light reaching the water.

To maintain maximum disinfection performance, we recommend replacing the quartz sleeve every 1–2 years and cleaning it during routine maintenance inspections.

Suitable For

• Whole house UV water filtration systems
• Rainwater filtration systems
• Bore water treatment systems
• Tank water filtration systems
• Rural and off-grid water supplies
• Residential drinking water treatment

Key Features

✔ 48W high-output UV-C lamp

✔ 436mm length with 4-pin flat connection

✔ Compatible with H1-450 and H7-90-AT systems

✔ Designed for effective water disinfection

✔ Rated for 9,000 hours of operation

✔ Supports safe drinking water treatment

✔ Easy replacement and maintenance

Restore your UV system’s sanitisation performance with a genuine high-output replacement lamp designed for reliable whole-house water treatment.
