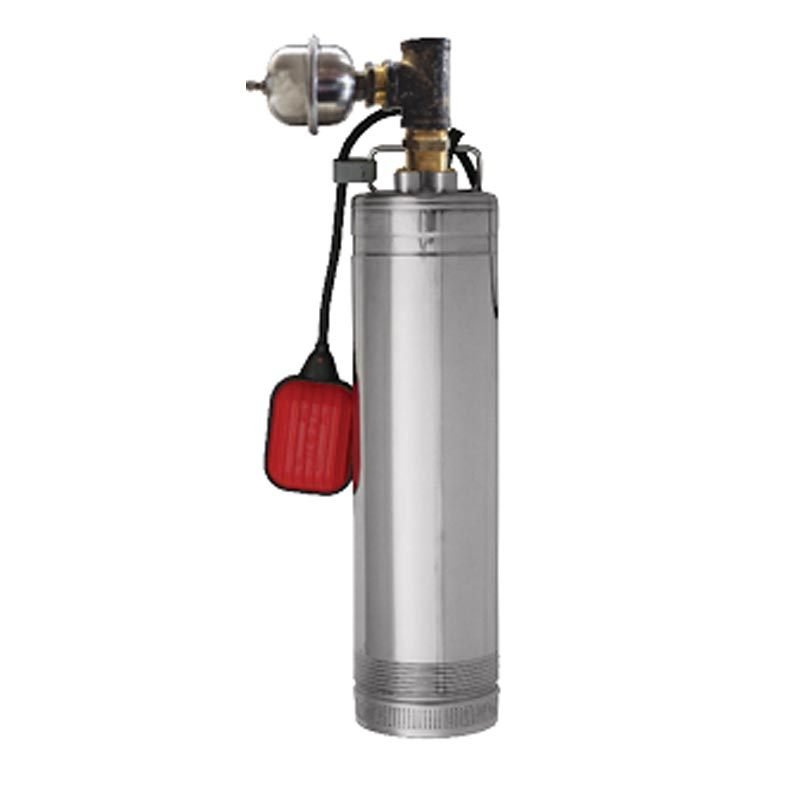

Exclusive to the market, this REEFE® submersible pressure pump features an integrated pressure controller for easier installation and seamless operation in Rainwater supply applications. 100% European made, guarantees exceptional quality and performance. This pump is compact, lightweight and robust for extended service life across various applications.
House – Cabin – Shed
Rainwater Systems
Irrigation
Clean water transfer from tanks
Rain to Mains systems
Toilet Blocks
Automatic start and stop depending on demand of water by users
Integrated pressure controller with 220kPa/2.2 bar cut-in
Supplied with 10m H07RN-F Power Cable
Float switch and in built run-dry protection
Internal blockage detection system, which shuts down the pump if debris obstructs the internal check valve
Compact design, water-cooled motor
Thermal overload protection
Corrosion resistant 304 Stainless Steel
Maximum water temperature 35°C
Certified to AS/NZS4020 for use with potable water
Electrical Safety Approval to AS/NZS 60335.2.41
Stainless Steel 304 pump body, motor shaft, handle, cover, screen
Polymer Impellers, diffusers
Alumina Graphite, lubricated mechanical seal
Polymer Float switch
Supplied with mini pressure tank which must be installed close to the discharge of the pumpIngress Protection IP68
Insulation Class F
| AMPS | 3.8 | P2 | 0.37 |
|---|---|---|---|
| RATED FLOW | 40 L/min | RATED HEAD | 22m |
| MAXIMUM FLOW | 80 L/min | MAXIMUM HEAD | 32m |
| NO. OF IMPELLERS | 3 | NO. OF TAPS | 4 – 6 |
| CABLE LENGTH | 10m | INLET | OUTLET | 25mm |
| SIZE D Ø (mm) | 127 x 502 | ||
