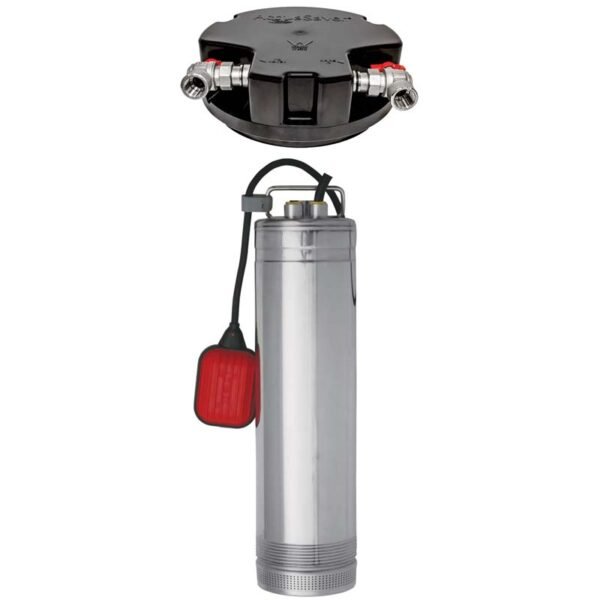

The RM5000-4 features a Submersible Multistage Pressure Pump with integral controller, specifically designed for fast and easy installation. The pumping valve are made in Europe, guaranteeing exceptional quality and performance in Rainwater supply applications. This system is suitable for underground tanks and best suited for supply to toilets, laundries and small house or cabin with one bathroom.
PUMP
Automatic start and stop on demand
Mains Flow -50L/Min
Integrated pressure controller with 220kPa/2.2 bar cut-in
Supplied with 10m H07RN-F cable
Integrated run-dry protection
Internal blockage detection system, which shuts down the pump if debris obstructs the internal check valve
Compact design, water-cooled motor
Thermal overload protection
RM SYSTEM

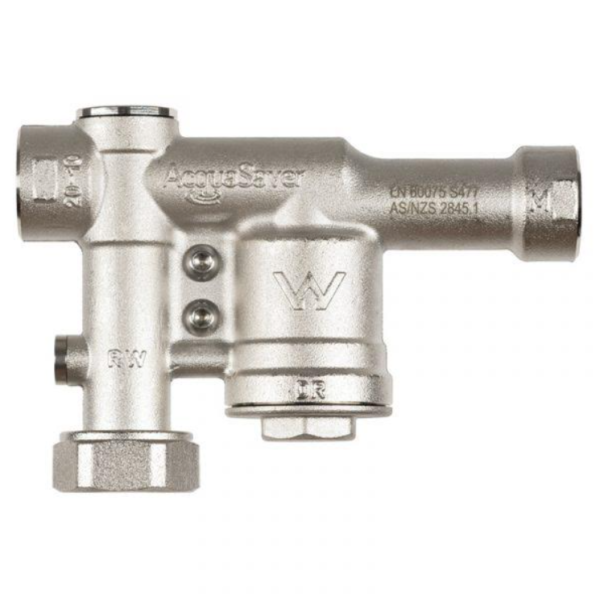

Rain to Mains Valve with minimal pressure reduction on mains supply
Integrated check valve, 100% Hydraulic
Corrosion resistant
Certified to AS/NOS4020 for use with potable water

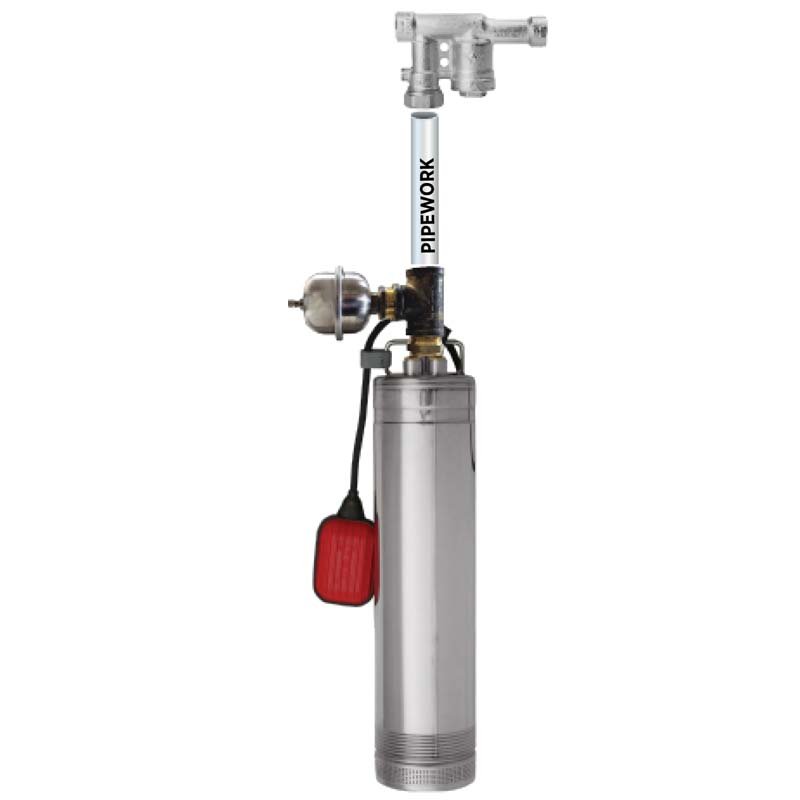

| DESCRIPTION | RM5000-4 with RPS57E Pump & RM1600-2 Valve | ||
|---|---|---|---|
| AMPS | 6 | P1 | P2 | 1.25 | 0.75 |
| MAXIMUM FLOW | 90 L/min | MAXIMUM HEAD | 57m |
| NO. OF IMPELLERS | 5 | CABLE LENGTH | 10m |
| PUMP SIZE D x H (mm) | E127 x 610 | HOUSE SIZE & BATHROOMS** | Medium | 2 – 3 Bathrooms |
